Single Ply Silicone Ducting
Single Ply Silicone Ducting

Single Ply Silicone Coated Glass Fabric Ducting x 4 Mtr

From £112.00 Excl. VAT

  Hurry up! Sale end in:
+ −
  •  Delivery & Return
    All orders are despatched within 3-5 days of receiving the order unless there is a problem due to unforseen circumstances, in which case we will notify you as soon as possible. Orders using UK Shipping are despatched via Fed Ex couriers on a next day before 5.00pm service. Our standard delivery charge for UK Shipping is £9.50 plus VAT but all orders over £150 excluding VAT delivery is free of charge*. For small orders under £5 we offer a Royal Mail 3-5 day delivery option at £5 plus VAT. If you wish to make your own arrangements for carriage, please add the details in the notes section of your order. Should you require clarification on any of the above points, feel free to telephone us on Harrogate 01423 712038.   *Applies to mainland UK only. Additional charges may apply for the Highlands and Islands of Scotland and Ireland.
  ... people are viewing this right now
  Share
Description

Single Ply Silicone Ducting x 4 Mtr Lengths


Description

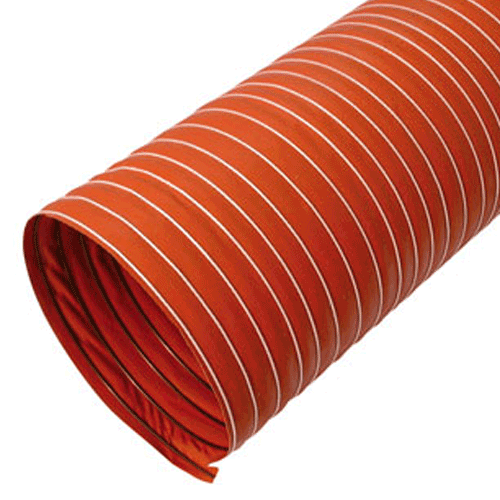

Single layer silicone ducting is made of 1 layer of silicone coated glass fibre fabric with an internal spring steel helix and a single silicone coated outer glass fibre cord.
It is a high temperature ducting that is used in a variety of industries.

Sizes: Items *Bold, are standard sizes, other sizes are available, please enquire at: sales@hoseshop.net

Applications
Suitable for air handling and extraction, where extreme of temperature are involved.

Hot air drying machines, automotive, transportation, graphics industry, fume and dust extraction and blown film extrusion.

Temperature: –80 Deg C to +300 Deg C (in 20 Deg C ambient)

Key features:
Very flexible and lightweight
Very good heat resistance
Excellent heat ageing characteristics
Good low temperature flexibility

Price is per 4 Mtr length (other lengths available on request)



Inside Diameter Outside Diameter Max. Working Pressure Min. Bend Radius Weight (Kg/Mtr)
19mm 22mm 1.8 Bar 8mm 0.4
25mm 28mm 1.5 Bar 8mm 0.52
32mm 35mm 1.5 Bar 10mm 0.6
*38mm 41mm 1.5 Bar 12mm 0.76
40mm 43mm 1.5 Bar 13mm 0.8
*51mm 54mm 1.5 Bar 16mm 1.1
57mm 60mm 1.3 Bar 18mm 1.26
60mm 63.5mm 1.3 Bar 20mm 1.32
*63mm 66.5mm 1.3 Bar 22mm 1.4



Inside Diameter Outside Diameter Max. Working Pressure Min. Bend Radius Weight (Kg/Mtr)
70mm 73.5mm 1.2 Bar 24mm 1.50
*76mm 79.5mm 1.1 Bar 27mm 1.6
80mm 83.5mm 1.1 Bar 28mm 1.65
83mm 86.5mm 1.1 Bar 28mm 1.72
89mm 92.5mm 1.1 Bar 29mm 2.58
*102mm 106mm 1.1 Bar 35mm 3.2
115mm 119mm 1 Bar 40mm 3
*127mm 131mm 0.9 Bar 46mm 3.16
*152mm 156.5mm 0.8 Bar 51mm 3.8



Inside Diameter Outside Diameter Max. Working Pressure Min. Bend Radius Weight (Kg/Mtr)
180mm 185mm 0.6 Bar 60mm 3.9
*203mm 208mm 0.6 Bar 68mm 5.04
254mm 259mm 0.4 Bar 102mm 6
306mm 311mm 0.1 Bar 123mm 7.5

Non-standard sizes are available, please enquire at: sales@hoseshop.net

​For further information please ring Hoseshop on 01423 712038 or email us at: sales@hoseshop.net
