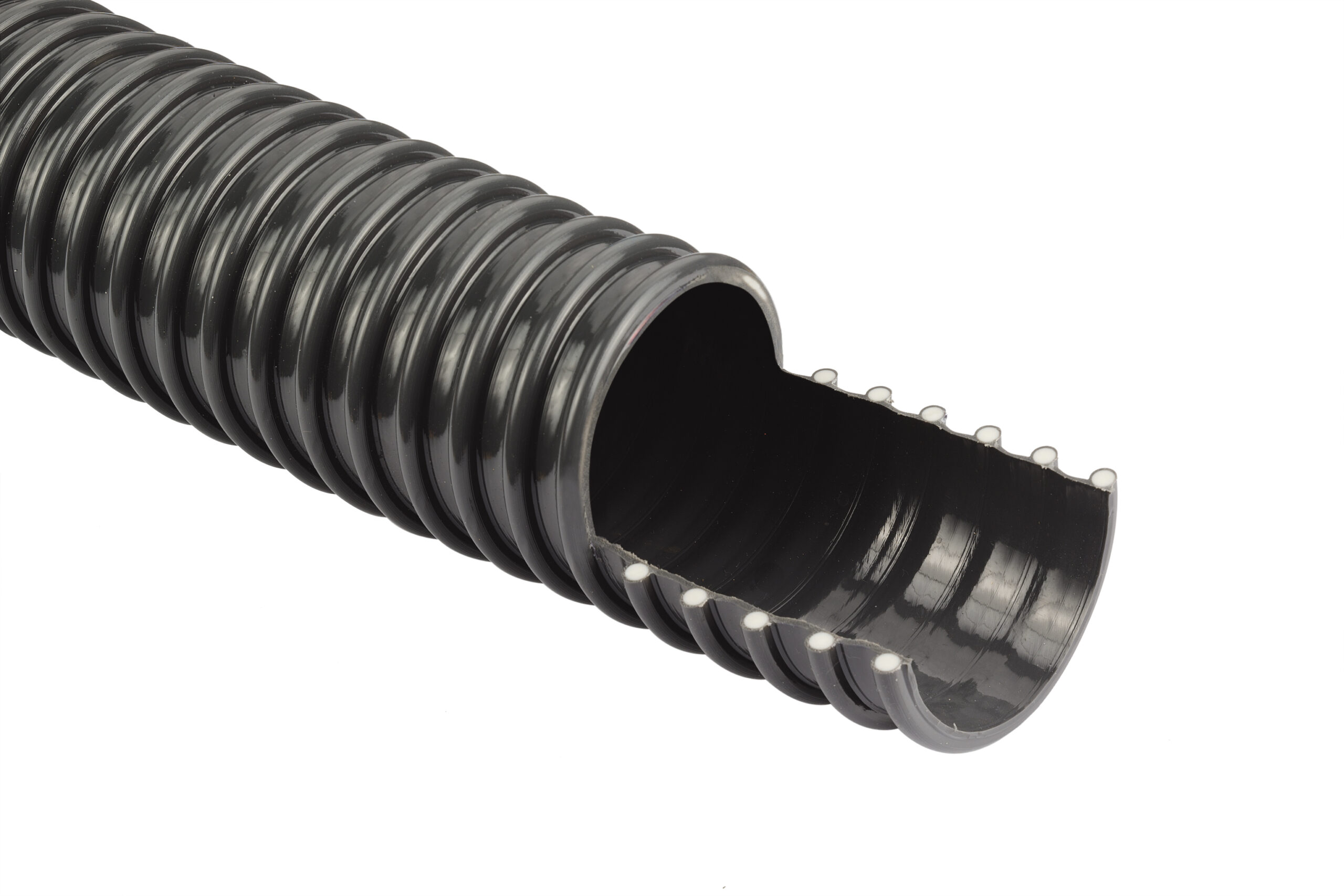

25mm Bore PVC Ducting x 30 Mtr
£92.00 Excl. VAT
|Part No: CVL10GRY30M|
25mm (1″) Bore PVC x 30 Mtr
Manufactured in the UK by Griflex.
Internal diameter: 25.4mm (1″)
External diameter: 32mm
Wall thickness: 3.3mm overall
Colour: Dark grey, white helix
Length: 30 Mtr supplied in a coil
Weight: 6 Kg per 30 Mtr
Min. bend radius: 25mm
Working pressure: 0.5 Bar
Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20 Deg C.
Weights are approximate dependant upon working tolerance and density of materials.
Bending diameter information is intended as a guide to the minimum bend radius at 20 Deg C ambient temperature without restricting the bore. It does not mean that the hose cannot be bent below the given dimensions but restriction is likely to occur.
