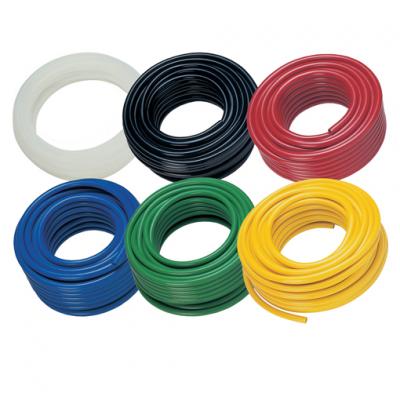

PU Tubing
Polyurethane (PU) Tubing is an Ester based polyurethane tubing which has outstanding characteristics when compared with other pneumatic tubing. PU Tubing is extremely flexible and offers excellent bend capabilities and excellent abrasion resistance, making it ideal for pneumatic control or robotic systems.
Polyurethane Tubing is suited for use with push in fittings; compression fittings; quick-fit fittings and hose tails. PU Tubing is resistant to many chemicals, gases and oil (if in doubt please ask). It is not suitable for use high humidity environments. Our Polyurethane Tubing range goes from 3mm to 16mm diameter in 25 metre coils and 4mm to 12mm diameter in 100 metre coils and is available in a range of different colours.
For more information on Polyurethane Tubing call us on 01423 712038 or email us.
Model: PU03/020
Dimensions: 3mm O/D x 2mm I/D x 25 Metre
Colour: Blue
Max Working Pressure: 10 Bar (150 psi)
Temperature Range: -40 to + 70 deg C
Min Bend Radius: 15mm
Construction: Ester based polyurethane, resistant to chemicals, fuel and oil (chemical resistance chart available on request)
Food Use: No
Ty..
£15.12
Ex Tax:£12.60
Model: PU04/025
Dimensions: 4mm O/D x 2.5mm I/D x 25 Metre
Colour: Transparent, Black, Blue, Red, Yellow, Green
Max Working Pressure: 12 Bar (175 psi)
Temperature Range: -40 to + 70 deg C
Min Bend Radius: 20mm
Construction: Ester based polyurethane, resistant to chemicals, fuel and oil (chemical resistance cha..
£14.70
Ex Tax:£12.25
Model: PU04/025-100
Dimensions: 4mm O/D x 2.5mm I/D x 100 Metre
Colour: Transparent, Red, Yellow, Green
Max Working Pressure: 12 Bar (190 psi)
Temperature Range: -40 to + 70 deg C
Min Bend Radius: 20mm
Construction: Ester based polyurethane, resistant to chemicals, fuel and oil (chemical resistance chart available..
£44.10
Ex Tax:£36.75
Model: PU05/030
Dimensions: 5mm O/D x 3mm I/D x 25 Metre
Colour: Black, Blue
Max Working Pressure: 13 Bar (185 psi)
Temperature Range: -40 to + 70 deg C
Min Bend Radius: 22mm
Construction: Ester based polyurethane, resistant to chemicals, fuel and oil (chemical resistance chart available on request)
Food Use:..
£32.52
Ex Tax:£27.10
Model: PU06/040
Dimensions: 6mm O/D x 4mm I/D x 25 Metre
Colour: Clear, Black, Blue, Red, Yellow, Green
Max Working Pressure: 11 Bar (155 psi)
Temperature Range: -40 to + 70 deg C
Min Bend Radius: 25mm
Construction: Ester based polyurethane, resistant to chemicals, fuel and oil (chemical resistance chart..
£21.60
Ex Tax:£18.00
Model: PU06/040-100
Dimensions: 6mm O/D x 4mm I/D x 100 Metre
Colour: Clear, Black, Blue, Red, Yellow, Green
Max Working Pressure: 11 Bar (155 psi)
Temperature Range: -40 to + 70 deg C
Min Bend Radius: 25mm
Construction: Ester based polyurethane, resistant to chemicals, fuel and oil (chemical resistance chart avai..
£76.80
Ex Tax:£64.00
Model: PU08/060
Dimensions: 8mm O/D x 6mm I/D x 25 Metre
Colour: Transparent, Black, Blue, Red, Yellow, Green
Max Working Pressure: 8 Bar (115 psi)
Temperature Range: -40 to + 70 deg C
Min Bend Radius: 35mm
Construction: Ester based polyurethane, resistant to chemicals, fuel and oil (chemical resistance ..
£41.40
Ex Tax:£34.50
Model: PU08/060-100
Dimensions: 8mm O/D x 6mm I/D x 100 Metre
Colour: Transparent, Red, Yellow, Green, Blue Max Working Pressure: 8 Bar (115 psi)
Temperature Range: -40 to + 70 deg C
Min Bend Radius: 35mm
Construction: Ester based polyurethane, resistant to chemicals, fuel and oil (chemical resistance chart av..
£154.20
Ex Tax:£128.50
Model: PU10/065
Dimensions: 10mm O/D x 6.5mm I/D x 25 Metre
Colour: Transparent, Black, Blue, Red, Yellow, Green
Max Working Pressure: 10 Bar (145 psi)
Temperature Range: -40 to + 70 deg C
Min Bend Radius: 35mm
Construction: Ester based polyurethane, resistant to chemicals, fuel and oil (chemical resistance ch..
£53.70
Ex Tax:£44.75
Model: PU10/065-100
Dimensions: 10mm O/D x 6.5mm I/D x 100 Metre
Colour: Transparent, Black, Blue, Red, Yellow, Green
Max Working Pressure: 10 Bar (145 psi)
Temperature Range: -40 to + 70 deg C
Min Bend Radius: 35mm
Construction: Ester based polyurethane, resistant to chemicals, fuel and oil (chemical resistance c..
£186.00
Ex Tax:£155.00
Model: PU12/080
Dimensions: 12mm O/D x 8mm I/D x 25 Metre
Colour: Transparent, Black, Blue, Red, Yellow, Green
Max Working Pressure: 8 Bar (120 psi)
Temperature Range: -40 to + 70 deg C
Min Bend Radius: 40mm
Construction: Ester based polyurethane, resistant to chemicals, fuel and oil (chemical resistance chart..
£70.80
Ex Tax:£59.00
Model: PU12/080-100
Dimensions: 12mm O/D x 8mm I/D x 100 Metre
Colour: Transparent, Black, Blue, Red, Green
Max Working Pressure: 8 Bar (120 psi)
Temperature Range: -40 to + 70 deg C
Min Bend Radius: 40mm
Construction: Ester based polyurethane, resistant to chemicals, fuel and oil (chemical resistance chart availa..
£250.20
Ex Tax:£208.50
