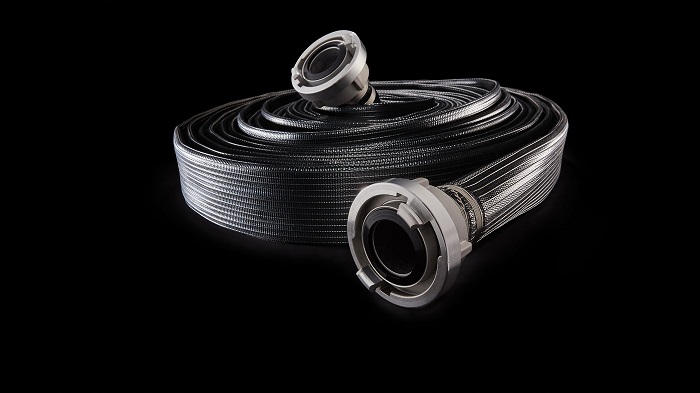

Heavy Duty Layflat Hose

Heavy Duty Layflat Hose, is widely used for the transfer and delivery of water. Aptly named, Layflat Hose has the added benefit of being completely collapsible which makes it easy to store and transport when it’s not in use.

Hose Shop supply a wide selection of quality Heavy Duty Layflat Hose, which offers excellent resistance against the weather, rot and various chemicals whilst still being relatively lightweight. These features make it a popular choice for applications such as construction sites, agriculture, mining, water transfer, lightweight sewer cleaning and cable protection.

Features:

Excellent resistance to weathering, UV and ozone.
Superior abrasion resistance, suitable for all ground conditions.
No bio-degradation, excellent resistance to agricultural chemicals and fertilisers.
Very durable and hard wearing for long service life.

Construction:

Lining and cover

High grade formulated NBR/PVC extruded in one-step production process.
Inside: Very smooth for minimum friction loss.
Outside: Ribbed for excellent abrasion resistance.


Textile reinforcement
High tenacity polyester warp and polyamide/polyester weft giving high tensile strength.


Length: Available 10 Mtr, 50 Mtr and 100 Metre coils (other lengths available on request).


For more information on any of our Hose Products, please don’t hesitate to contact our friendly team on 01423 712038.

Model: LFDR2
Product: Heavy Duty Layflat Hose 2" Bore Part No: LFDR2 Dimensions: 57mm O/D x 52mm (2") Bore - 2.5mm Wall thicknessLength: 10 Mtr, 50 Mtr or 100 Mtr (other lengths on request) Colour: Black Pressure: Working pressure 16 Bar (230 psi), occasionally 20 Bar (290psi). Burst pressure: 50 Bar ..
£142.20 Ex Tax:£118.50
Model: LFDR212
Product: Heavy Duty Layflat Hose 2.1/2" Bore Part No: LFDR212 Dimensions: 70mm O/D x 65mm (2.1/2") Bore - 2.5mm Wall thicknessLength: 10 Mtr, 50 Mtr or 100 Mtr (other lengths on request) Colour: Black Pressure: Working pressure 16 Bar (230 psi), occasionally 20 Bar (290psi). Burst pr..
£177.60 Ex Tax:£148.00
Model: LFDR3
Product: Heavy Duty Layflat Hose 3" Bore Part No: LFDR3Dimensions: 81.8mm O/D x 76mm (3") Bore - 2.9mm Wall thicknessLength: 10 Mtr, 50 Mtr or 100 Mtr (other lengths on request)Colour: BlackPressure: Working pressure 16 Bar (230 psi), occasionally 20 Bar (290psi). Burst p..
£190.80 Ex Tax:£159.00
Model: LFDR4
Part No: LFDR4Dimensions: 108.6mm O/D x 102mm (4") Bore - 3.3mm Wall thicknessLength: 10 Mtr, 50 Mtr or 100 Mtr (other lengths on request)Colour: BlackPressure: Working pressure 16 Bar (230 psi), occasionally 20 Bar (290psi). Burst pressure: 50 Bar (725 psi)Breaking Strength..
£289.80 Ex Tax:£241.50
Model: LFDR6
Part No: LFDR6Dimensions: 159.4mm O/D x 152mm (6") Bore - 3.7mm Wall thicknessLength: 10 Mtr, 50 Mtr or 100 Mtr (other lengths on request)Colour: BlackPressure: Working pressure 14 Bar (205 psi), occasionally 17 Bar (245 psi). Burst pressure: 42 Bar (610 psi)Breaking Strengt..
£493.80 Ex Tax:£411.50
Model: LFDR8
Part No: LFDR8Dimensions: 210.8mm O/D x 203mm (8") Bore - 3.9mm Wall thicknessLength: 10 Mtr, 50 Mtr or 100 Mtr (other lengths on request)Colour: BlackPressure: Working pressure 10 Bar (145 psi), occasionally 12 Bar (175 psi). Burst pressure: 30 Bar (435 psi)Breaking Strengt..
£874.80 Ex Tax:£729.00
Showing 1 to 6 of 6 (1 Pages)
